Nanjing Huadong Electronics Group

Main specification

HF generator

120KV,5kW ,40kHz

Fluoroscopy mode

Fluoroscopy mode40~120kv0.5~5mA

 (KV manual and automatic);

Pulsd fluoroscopy 40~120kv  0,5-5mA

Boost fluoroscopy 40~120kV 5~10mA;

Photography 40~120kV  1~250mAs

X ray tube

Dual-focus Rotating anode:0.3mm/0.6mm

 Italy IMD Technology

Detector

France Thales Brand

Plate:single A-Si TFT+photodiode plate

Scintillator: Csl

Total transmitted image width: 1344

Total transmitted image height: 1344

Pixel pitch: 154

Quantization depth: 16

Power supply input: 24±10%

Communication/ image transfer: Ethernet cable

The main feature of the Pixium 2121S detector are:

Cold start feature

Offset stability validity up to 10 minutes

Fluoroscopy and RAD images capability

Passive cooling device

High speed imagetransfer using Ethernet link

Image system

5 Degree recursive Noise Reduction

Frame freezing

Thousands of image data storage

Image conversing and rotating

Screen display with image comparison

Support “one click” print,print the image report

Equip with Dicom 3.0 network port(optional)

Support Dicom 3.0standard data export function

Mechanical motion specifications

Verticaltravel:0-400mm(electric)             Horizontaltravel:0~200mm

Rotation about horizontal axis:±180°(electric)

Slipping along the circular arcrail (electric)

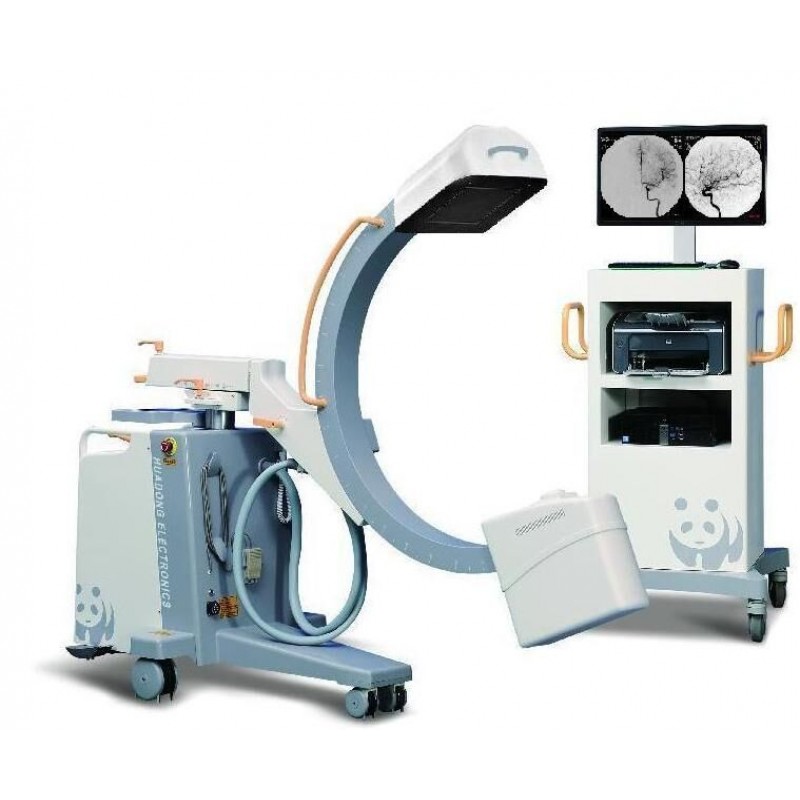

C-arm dimension

Distance of focal spot to image generator(SID):1000mm

Depth in arm≥650mm                                                 Mobile stand :1800mm*800mm*1850mm

Image system: 750mm*530mm*1680mm

Standard configuration

Detector :1set

x-ray generator:1set

image processor

24'' LCD high definition display 1 set

Mobile stand :1 set

Printer: 1set
