Nanjing Huadong Electronics Group

Key features:

1,DG3620 use the most advanced flat-panel detector, which is imported from France,Thales brand, it designed for surgical and interventional units, this detector is ready to run almost instantly .

2,With the Digital radiography , images collected by high-resolution imaging technology to solve the energy loss of the traditional CCD detector, and geometric distortion problem.

3,Standardized PACS system can be adapted to the needs of the new network era . With stable performance, low exposure dose, high-quality images can be easily obtained.

4.Warranty : the Flat Panel , x ray tube for 3years, whole machine for one year.

Digital Radiography System

Our digital radiography system is with Trixell flat panel detector, Toshiba x-ray tube. It has DICOM 3.0. PACS system is supported.

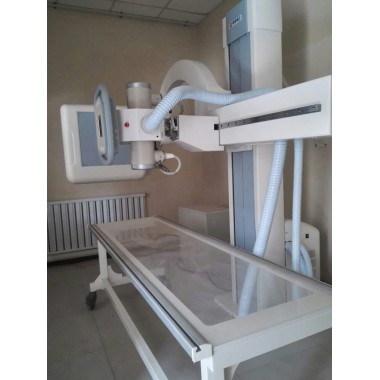

i. U-arm Digital Radiography

High frequency x-ray generator

  32kw, 125kv, 200mA

  Exposure time 0.0025~6.4s

  With function of self-protection

X-ray Tube

  Toshiba x-ray tube

  Rotating anode, focal spot 0.6/1.2mm

  Anode heat capacity 140KHu

Digital flat panel detector

  Trixell flat panel detector

  Size 16”*17”

  Spatial resolution 3.4lp/mm

Image acquisition system (DR workstation)

  CPU: Intel Pentium Core

  Memory 2GB, hard disk 320G

  Monitor: Dell 19” monitor

  Image processing: image rotating, image zooming, image processing, image printing, image transmission, e-report printing, etc.

Mechanical figures

Vertical travel 650mm---1700mm

SID range 1000---1800mm

Detector rotating range -45°~0~+45°

U-arm rotating range -30°~0~120°

Mobile bed dimension 2050*550*800mm

 Others

Power supply: Single-phase three wires 220V

            Three-phase five wires 380V

Packing:

790*540*790mm: 0.34CBM      85kg

760*560*460mm: 0.2CBM      44kg

2700*1050*1800mm: 5.1CBM  350kg

Total: 5.64CBM,   Gross weight :480KG

Delivery time: about 20 days

Payment terms: T/T

Shipping mode: By air or sea
